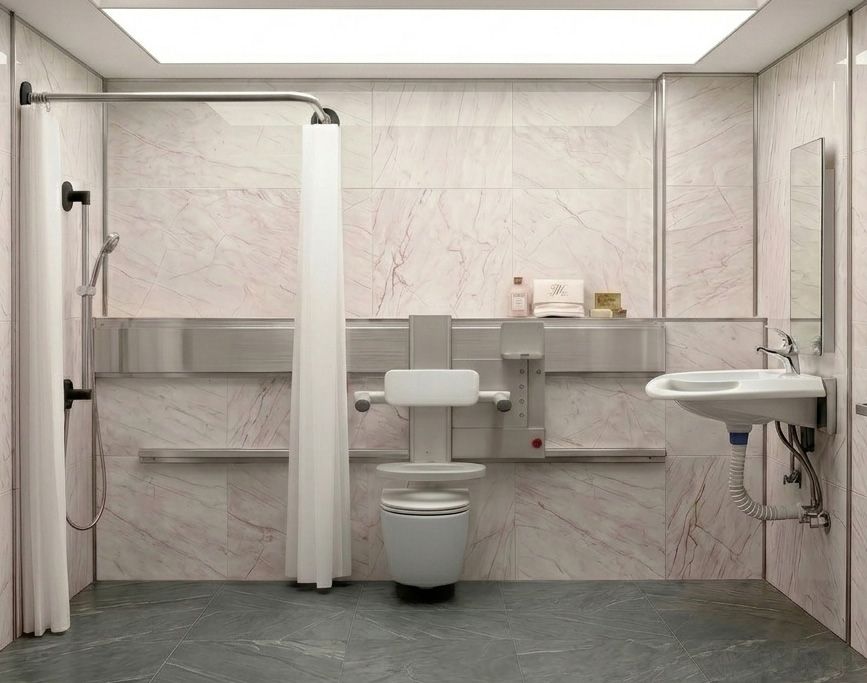

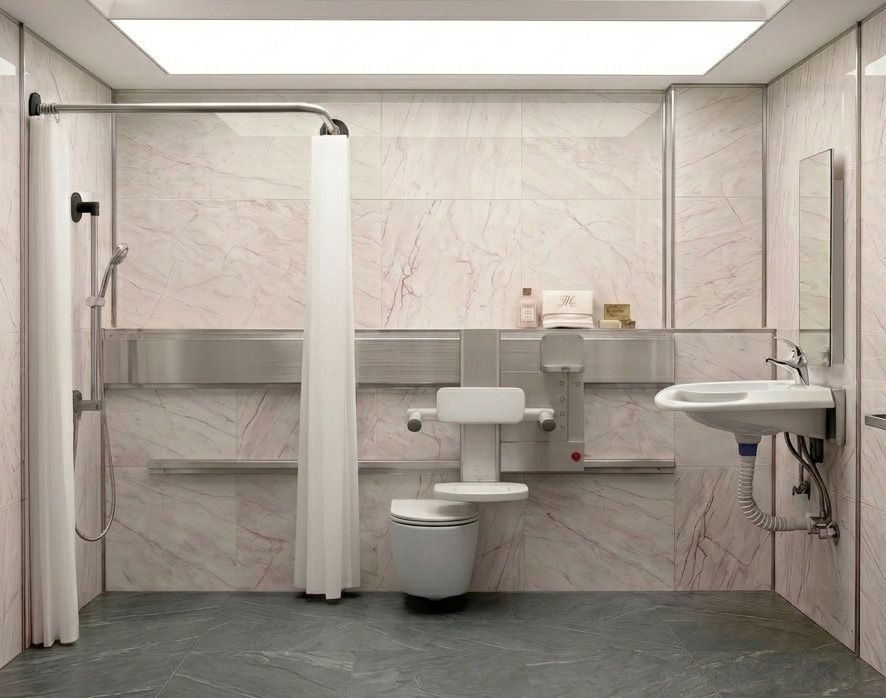

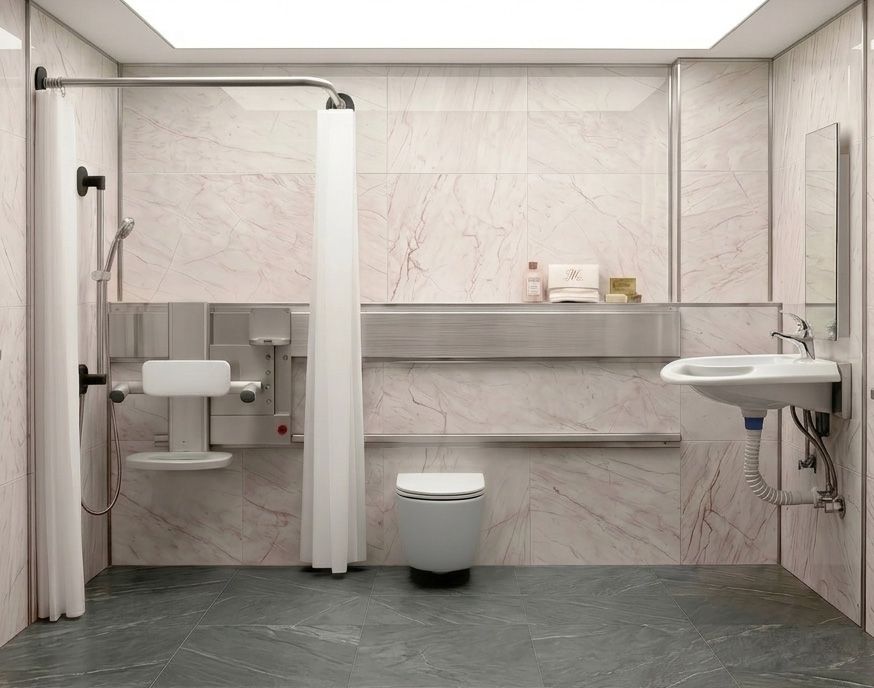

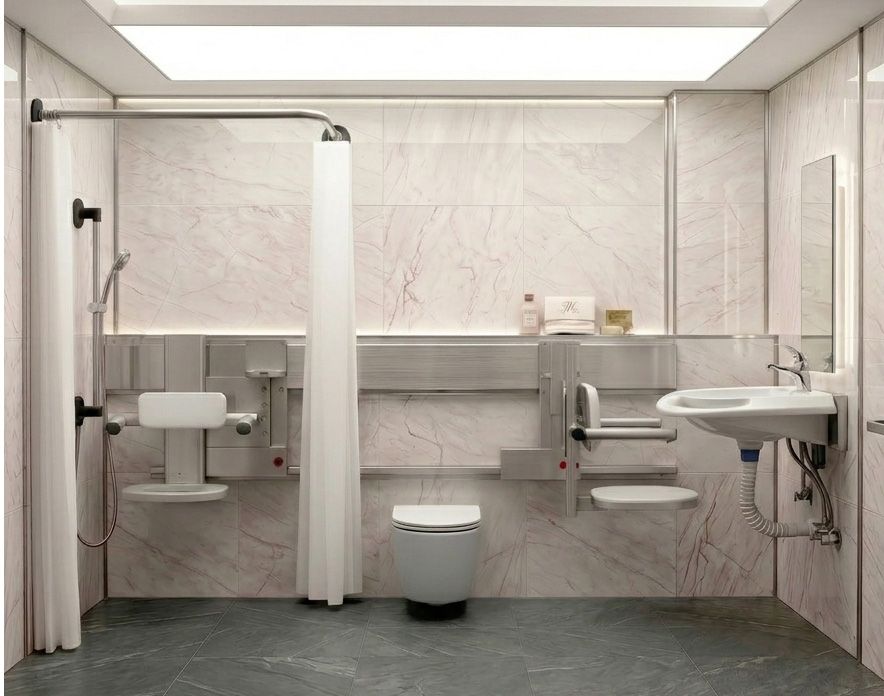

A premium wall-mounted modular track system that enables seating and support accessories to move smoothly throughout the bathroom, creating continuous assistance for showering, toileting and personal grooming—while remaining compatible with virtually any toilet or washbasin.
Advantages
Key Features
Specifications
Composition and Materials
Packaging
Maintenance
Technical Data Sheet
Installation Manual
FAQ
Advantages
Designed Around People, Not Products
The bathroom adapts to individual mobility needs instead of forcing users to adapt to fixed equipment.
One integrated track system provides uninterrupted assistance across showering, toileting, washing and daily grooming.
Users can remain safely seated while moving between different bathroom activities with minimal assistance.
Fewer transfers mean safer handling, lower physical strain and improved care efficiency.
Works with most standard toilets and washbasins, allowing complete flexibility without proprietary sanitary ware.
Accessories can be added, removed or repositioned as user needs evolve over time.
Modern architectural design replaces traditional institutional aesthetics, creating a warm and elegant bathroom environment.
Wall-mounted modular components keep the floor clear while optimizing accessibility in compact bathrooms.
Heavy-duty aluminum track with reliable locking mechanisms ensures smooth movement and stable positioning.
Upgradeable modular architecture reduces renovation costs and extends the service life of the bathroom.
· One System. Endless Configurations.
· Freedom That Moves With You.
· Continuous Support Without Transfers.
· Compatible With Your Preferred Bathroom Fixtures.
· Designed for Independence.
· Built for Care Professionals.
· Modular Today. Adaptable Tomorrow.
· Premium Design Beyond Healthcare.
· Safe Movement. Elegant Living.
· A Smarter Way to Create Accessible Bathrooms.
Key Features

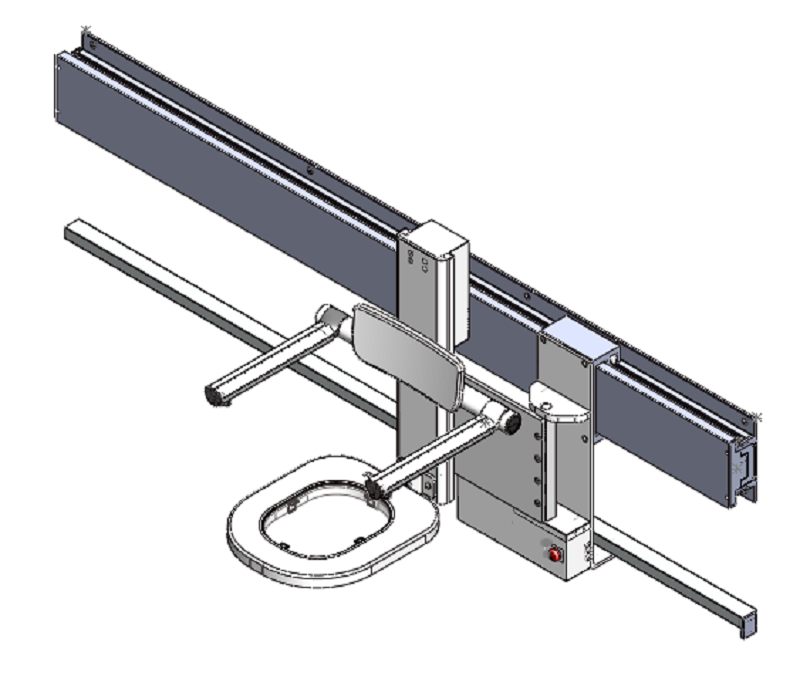

Heavy-duty wall-mounted aluminum track connecting multiple bathroom activity zones.
Seat glides smoothly along the wall track with minimal effort.
Allows users to rotate toward different activity areas without unnecessary transfers.
Designed for:
Showering
Toileting
Face Washing
Tooth Brushing
Hair Care
Personal Hygiene
Assisted Dressing
Components lock securely into place and can be repositioned quickly without special tools.
Compatible with virtually any toilet and washbasin selected by the customer.
Modular Accessories
Expandable with a range of interchangeable support components, including:
Shower Seats
Support Rails
Folding Arm Supports
Transfer Accessories
Additional Care Modules
Engineered for long-term durability in residential, assisted living and healthcare environments.
Modules can be arranged to suit different room layouts and individual mobility requirements.
Every accessory operates as part of one coordinated modular system rather than isolated products.

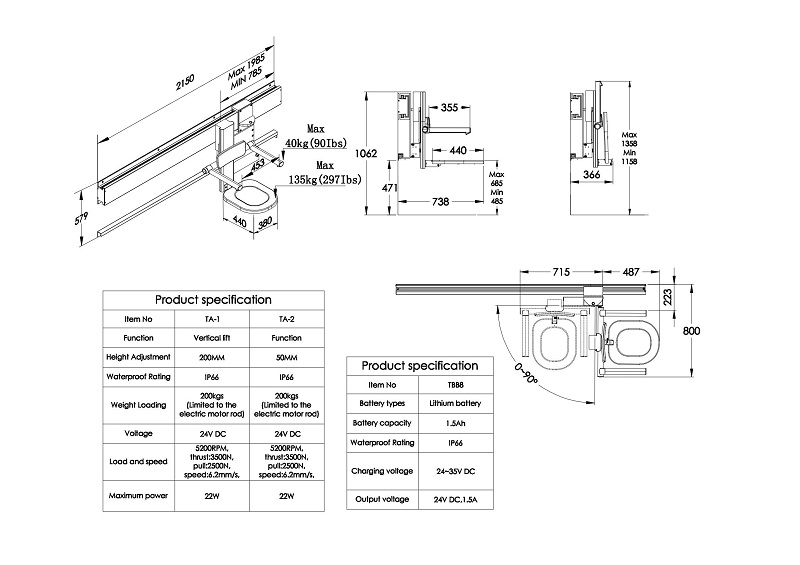

Specifications
Composition and Materials
· Main Material:
SS304 and Anodized aluminum for durability and corrosion resistance.
Packaging
Maintenance
Cleaning and Maintenance:
1. Clean with hot water or mild soap.
2. Remove chalky deposits with a 3:7 acetic acid-to-water solution, and rinse thoroughly with clear water.
3. Avoid using chlorine-based, corrosive, or abrasive cleaners to prevent surface damage.
FAQ
Q: Who is these products suitable for?
A: They are suitable for the elderly, pregnant, disabled, individuals with mobility challenges who need to assist during showers.
Q: How to install and use these facilities?
A: The products come with an instruction manual for installation and use.
Q: How to clean or maintain the product?
A:
The product is to be cleaned with hot water or a mild soapy cleaning agent.
▶ Do not use an autoclave or other type of steam cleaner.
▶ Avoid aggressive cleaning agents containing acids
▶ Never spray the product directly with a high pressure cleaner.
▶ Avoid use of abrasive, corrosive or chlorine-based cleaning or disinfecting products.
▶ To remove limescale marks on the aluminum parts, use 30% household vinegar to 70% water and afterwards wipe the parts with a cloth wrung out in clean water. In countries with relatively high levels of lime in the water supply, it may be necessary to remove lime scale deposits from the aluminum parts using a de-scaling agent such as acetic acid. Test this first on an area that is not visible when the product is in use.
▶ Maintenance
Remove dust from the wall mount of the sideways adjustable support arm once a month. Wipe with lubricant.
Check whether the connection part of the product is loose, whether there are cracks on the guide rail, whether the wall track notch is severely worn, etc. Once these situations occur, you should stop using it and contact a professional to evaluate and repair it in time.
Q: How to choose bathing stools and other aids for the elderly?
A:
When choosing bathing stools and other aids for the elderly, several key factors need to be considered to ensure safety and comfort. Here are some suggestions:
1. Safety
Non-Slip Design: Make sure the surface of the bathing stool has non-slip material to prevent sliding and falls.
Sturdiness: Choose a sturdy and stable bathing stool, preferably with anti-slip rubber feet to prevent slipping.
Weight Capacity: Ensure that the weight capacity of the bathing stool can support the user's weight to prevent accidents.
2. Comfort
Height Adjustable: It's best to choose a height-adjustable bathing stool so it can be adjusted according to the user's height and needs.
Comfortable Seat Cushion: Select a soft and comfortable seat cushion to increase comfort during use.
Armrests: Some bathing stools come with armrests, which provide additional support for the elderly when standing up and sitting down.
3. Convenience
Easy to Clean: Choose a material that is easy to clean, such as plastic or stainless steel, to avoid mold and bacteria buildup.
Lightweight and Portable: If frequent moving or multi-functionality is needed, consider a lightweight and foldable design for easy storage and transport.
4. Adjustability and Multi-functionality
Removable Seat Cushions or Armrests: This allows for adjustments or cleaning based on the user's needs.
Bathtub Fixtures: Some bathing stools come with bathtub fixtures to securely attach to the edge of the tub.
5. Seek Professional Advice
Consult with a Doctor or Caregiver: If there is specific health or physical issues, it's best to consult with a doctor or caregiver for customized advice.
Other Considerations
Brand and Quality: Choose reputable brands and manufacturers to ensure the product meets safety standards.
User Manual: Before purchasing and using, carefully read the user manual to ensure correct installation and usage.
Lastly, it's important to choose bathing stools and aids based on the individual needs and health conditions of the elderly person. It's a good idea to have the elderly person try sitting on it before purchase to see if it's suitable and comfortable.
